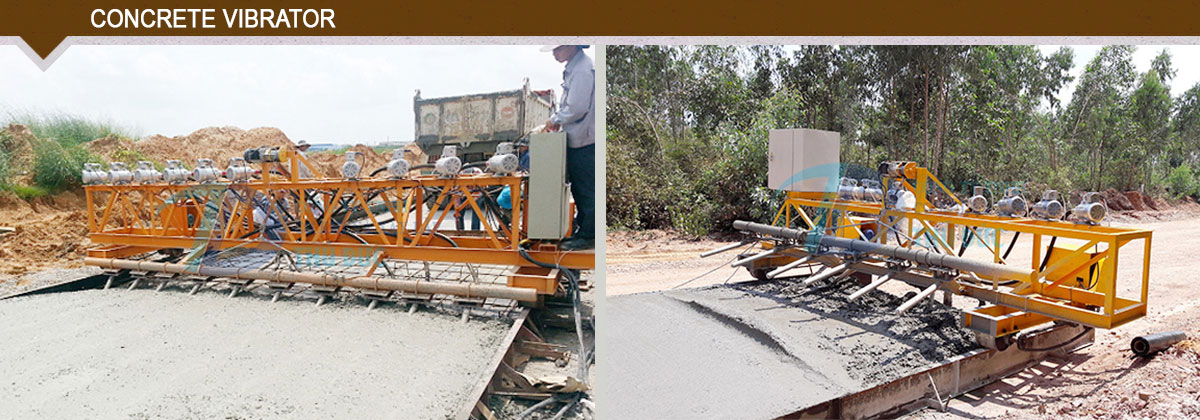

Concrete vibrator
The machine and concrete paving leveling machines are used together,with very high efficiency.
MODEL | MD 3500 | MD 4500 | MD 5500 | MD 7000 |
Working width | 3.5 m | 4.5 m | 5.5 m | 7000 m |
Max vibrator depth | 400mm | 400mm | 400mm | 400mm |
Speed working | 3-5 m/min | 3-5 m/min | 3-5 m/min | 3-5 m/min |
Motor moving | 2x1 HP | 2x2 HP | 2x2 HP | 2x3 HP |
Vibrator Power | 7 x1.1 KW | 10x1.1 KW | 13x1.1 KW | 17x1.1 KW |
Vibrator diameter | Ø 50 | Ø 50 | Ø 50 | Ø 50 |
Lifting power | 1 HP | 1.5 HP | 1.5 HP | 2 HP |
Dimention( L x W x H) | 4530x1750x1710 | 5630x 1750x1710 | 6630x 1750x1710 | 8670 x1750x1710 |
Weight | 450 kg | 520 kg | 660 kg | 900 kg |
