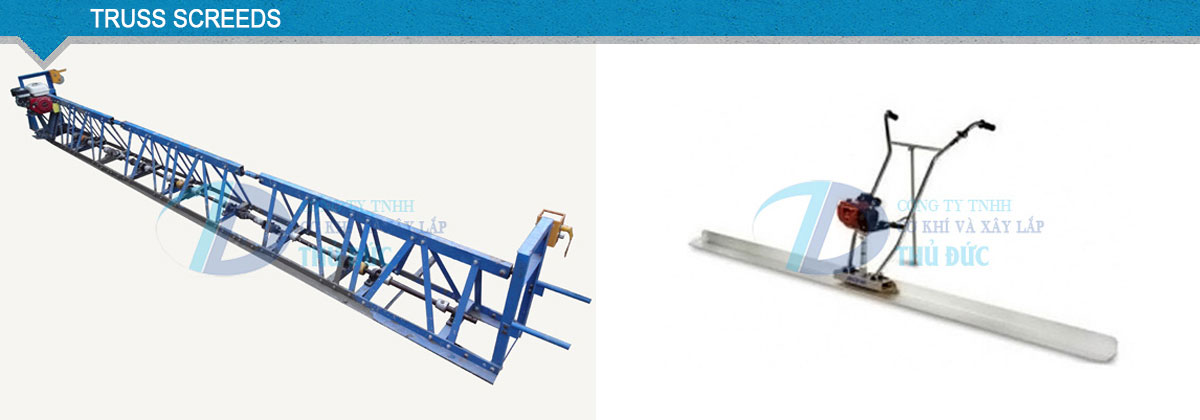

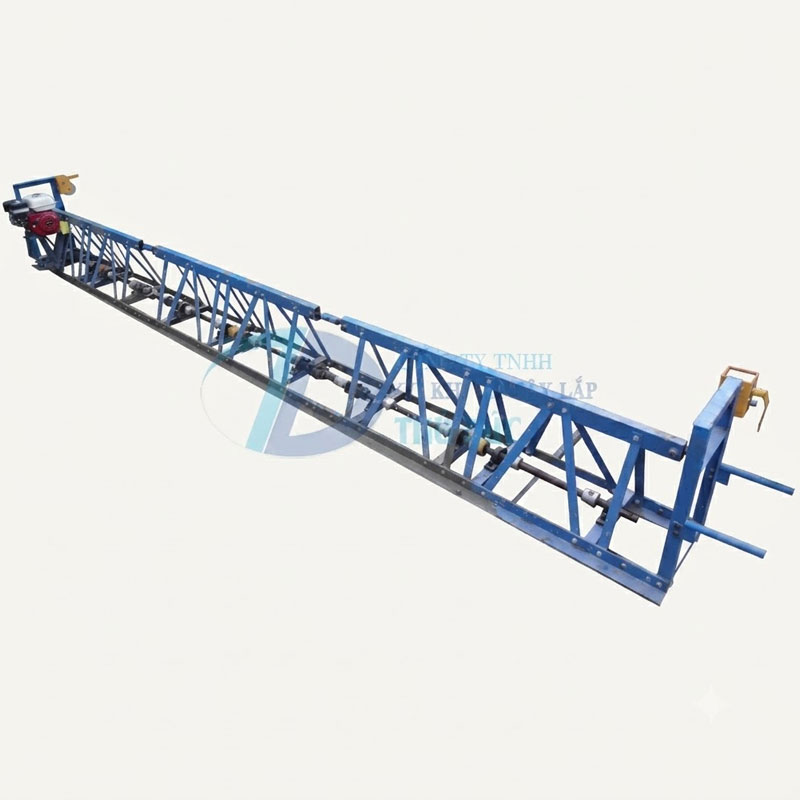

Truss Screed
Concrete screed: for smoothing concrete surfaces, suitable for pouring concrete in yards, workshops, small concrete roads, etc.
Specifications
Model | DT 4 | DT 6 | DT 8 | DT10 |
Machine dimensions | 4x0.47x0.55 m | 6x0.47x0.55 m | 8x0.47x0.55 m | 10x0.47x0.55 m |
Maximum width of concrete surface to be constructed | 3.8 m | 5.8 m | 7.8 m | 9.8m |
Amplitude of oscillation | 0.6 mm | 0.6 mm | 0.6 mm | 0.6 mm |
Oscillation frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz |
Engine | Honda GX 160 | Honda GX 160 | Honda GX 270 | Honda GX 270 |
4-stroke, 1-cylinder, air-cooled engine, n = 3600 rpm | ||||
Extension frame dimensions (length * width * height) mm | ||||
2m frame | 2000 * 470 * 550 | |||
1m frame | 1000*470*550 | |||
