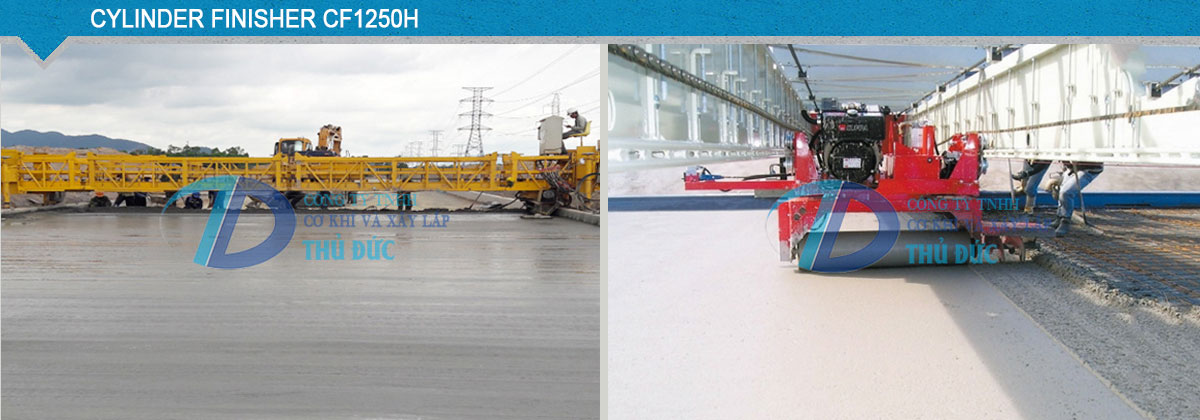

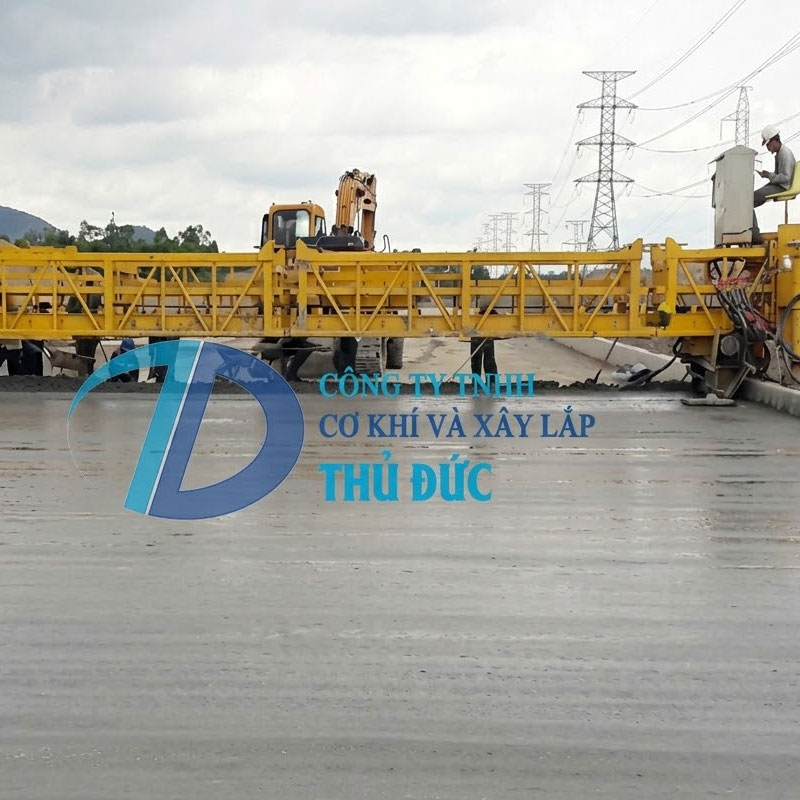

CF1250H Cement Concrete Paving Machine

The CF1250H hydraulic concrete paver is currently the most versatile and flexible concrete paving machine available. It can pave roads of all widths with a maximum concrete thickness of 45cm and accommodate concrete slumps from 0-15cm. The machine is used for concrete road construction, airports, ports, factories, and bridge decks. Additionally, it can be converted for paving slopes in irrigation canals and embankments.

MAIN TECHNICAL SPECIFICATIONS

• Working capacity: 150m² with single drum, 300m² with double drum

• Working width: 2.5-6.5m, with the possibility of adding a frame to pave roads up to 20m wide.

• Main engine: Honda GX630, 15kW, 3000 rpm, air-cooled, 12V electric start.

• Roller engine: Honda GX270, 13 HP, 3000 rpm, air-cooled, electric start.

• The machine frame is modular and quick-assembly, ensuring sturdiness and ease of transport.

• The working set includes a roller drum for compacting and finishing concrete surfaces with a maximum pass width of 1.2m. Driven by a hydraulic motor – USA, European standard. A 500mm long spreading screw for leveling concrete.

• The trolley system carrying the working set is driven by a hydraulic motor – USA, with a travel speed of 0-30 m/min.

• The system moves on 4 independent legs driven by 2 hydraulic motors – USA, European standard. The machine's height is mechanically adjusted on all four legs. It moves on rails or on formwork.

• Machine weight: 2000kg (standard)

REASONS WHY YOU SHOULD CHOOSE THE CF1250 MACHINE FOR YOUR PROJECT

• Not all concrete road projects are the same in width and thickness, therefore concrete road contractors need a machine that can flexibly work with all road gauges.

• Contractors need a modern piece of equipment to win bids in high-quality concrete road projects.

• General construction contractors need a versatile piece of equipment that can work on concrete roads, airports, factories, and also on sloping concrete for irrigation projects.

• The CF1250 machine can meet these requirements at a cost that is suitable for today's competitive environment.
